Architect
Livady Architects
Completion
2024
Gross area
446 m²
Category
Residential buildings
Tags
sustainable terraced house wood
More

Livady Architects

The four-apartment terraced house, built in a listed railway station park in Helsinki, is constructed with solid wood structures and has natural ventilation, the use of which is supported by a high attic created by a steep gable roof. Solid structures and natural ventilation are the basis of the architectural firm Livady’s work.

The building’s base is made of natural stone, while the air flues and firewalls separating the apartments are built of brick. The solid wood external walls utilise so called wave layered timber (WLT) elements, which contain no glue and are attached together with steel threaded rods. Inside, the walls are plastered with clay. Sawdust was meant to be used as insulation, but due to availability problems, cellulose wool was used instead.

The roof was made of around 6,000 recycled and reconditioned tiles originally manufactured by Kupittan Savi. The building is envisioned to have a lifespan of 400 years.

The features of the new building were designed to match those of the existing building stock around the plot: the residential buildings, a guardhouse built in the first decade of the 20th century and the Huopalahti Railway Station completed in 1924 and designed by architect Bruno F. Granholm. The design task included the renovation of an old red brick sauna and laundry building, which has now been refurbished to serve the residents.

Location

Kylätie 25 C, Helsinki
60.2178094, 24.8933679

Images

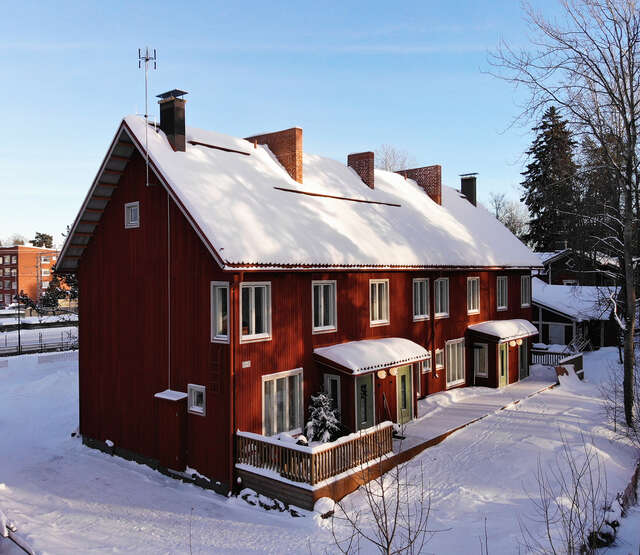

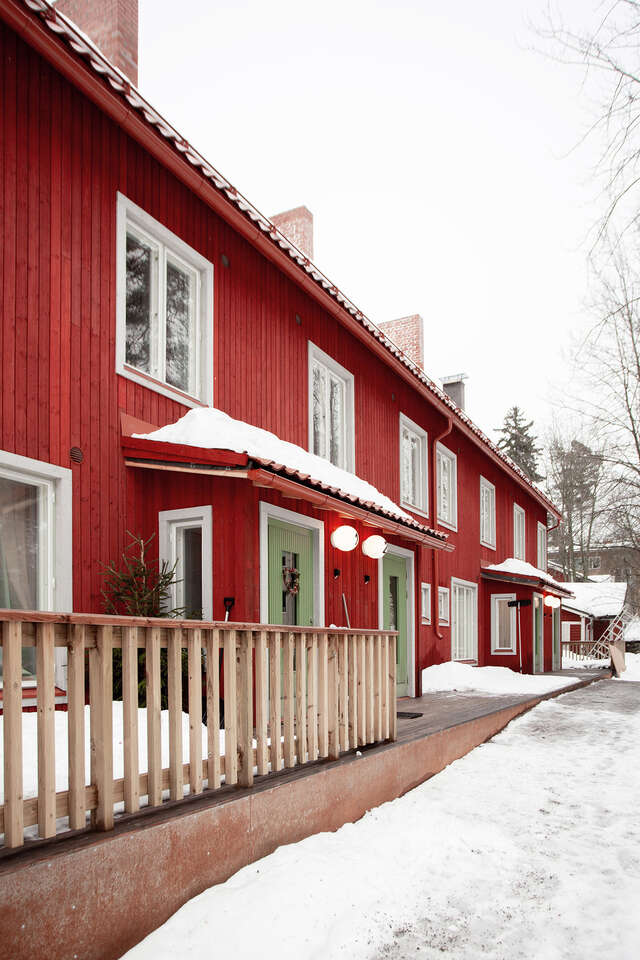

Huopalahti Residential Barracks
Huopalahti Residential Barracks (© Livady Architects)
Huopalahti Residential Barracks
Huopalahti Residential Barracks (© Livady Architects)

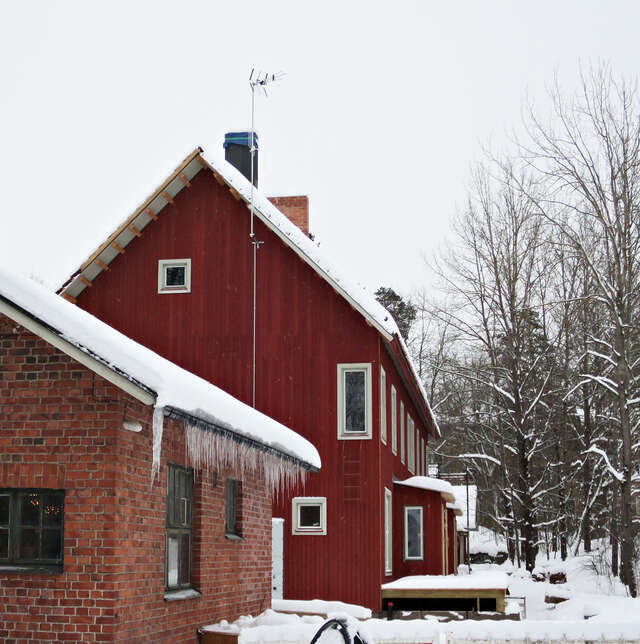

Before completion, Huopalahti Residential Barracks
Before completion, Huopalahti Residential Barracks (© Livady Architects)
Recycled roof tiles, Huopalahti Residential Barracks
Recycled roof tiles, Huopalahti Residential Barracks (© Livady Architects)
Huopalahti Residential Barracks
Huopalahti Residential Barracks (© Livady Architects)
Huopalahti Residential Barracks
Huopalahti Residential Barracks (© Livady Architects)
Huopalahti Residential Barracks
Huopalahti Residential Barracks (© Livady Architects)

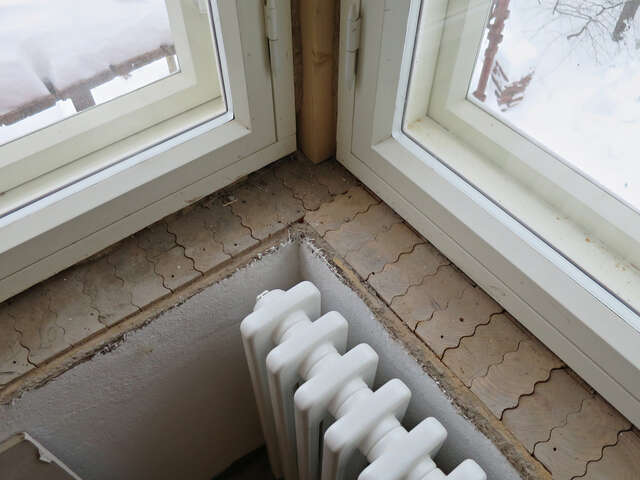

Wave layered timber wall structure, Huopalahti Residential Barracks
Wave layered timber wall structure, Huopalahti Residential Barracks (© Livady Architects)

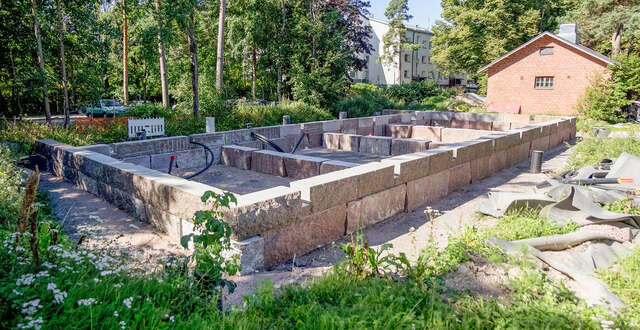

Natural stone base wall, Huopalahti Residential Barracks
Natural stone base wall, Huopalahti Residential Barracks (© M.F / Livady Architects)

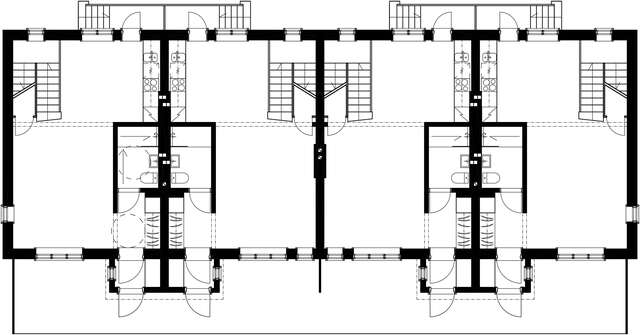

Ground floor, Huopalahti Residential Barracks
Ground floor, Huopalahti Residential Barracks (© Livady Architects)

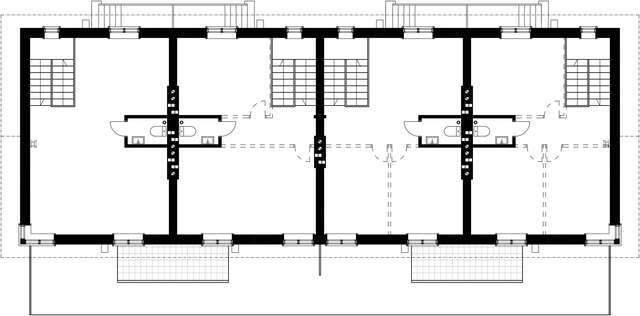

Upper floor, Huopalahti Residential Barracks
Upper floor, Huopalahti Residential Barracks (© Livady Architects)

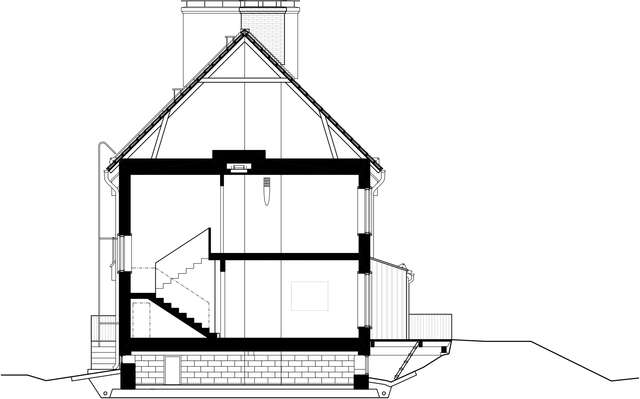

Cross section, Huopalahti Residential Barracks
Cross section, Huopalahti Residential Barracks (© Livady Architects)

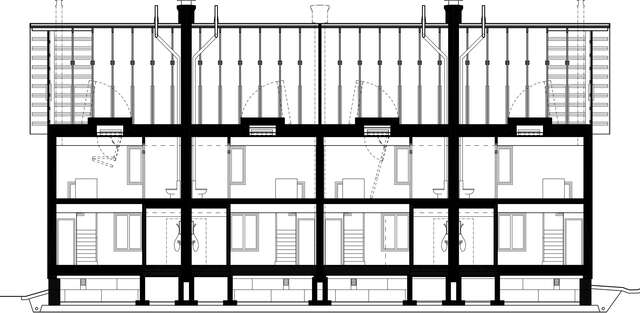

Longitudinal section, Huopalahti Residential Barracks
Longitudinal section, Huopalahti Residential Barracks (© Livady Architects)
