Architect
PES-Architects
Competition
2014
Completion
2018
Gross area
153000 m²
Themes
Finnish Architecture. Biennial Review 2020
Category
Assembly buildings
Tags
art ceramic competition concert concrete culture glass interior landmark steel theatre wood
Prizes
Finnish Architecture. Biennial Review 2020
More

PES-Architects website

In 2014, the Fuzhou Government hosted an international invited competition for the Strait Culture and Art Centre with the goal of strengthening the cultural image of the city. The cultural programmes of the Centre are complemented with commercial and family-oriented entertainment services to create a modern hybrid complex. This format is typical of the new phase of cultural building in China.

Located in Mawei New Town, facing the Minjiang River, the Strait Culture and Arts Centre functions as a connective device. It connects cities and communities along and over the Taiwan Strait. It connects the Fuzhou New City Development and its waterways to the Minjiang River and the natural environment.

The design takes inspiration from the petals of a jasmine blossom, the city flower of Fuzhou. The flower is manifested in the formal language and colour of the architecture. The five jasmine petal venues – an opera house, concert hall, multi-functional theatre, art exhibition hall and cinema centre – are linked by a Cultural Concourse and a large roof terrace. The roof terrace is accessible via two ramps from the Jasmine Gardens as well as from the Central Jasmine Plaza, providing a seamless connection from the complex to the riverfront of the Minjiang River. On the underground level, a “shopping river” is located along the Liangcuo River to connect the landscape to the interiors, as well as providing a connection between the metro station and the Centre.

Dividing the large complex into smaller units gives the Centre a more human scale and makes it easy for users to navigate both indoors and outdoors. Each building has a core area – a semi-public, curved gallery that follows the curvature of the main façade—that integrates the public interior space with the landscape of the Jasmine Gardens around the building and further with the Mahangzhou island natural reserve in front of the Centre.

Ceramic is used as the project’s main material due to its significance in the historical context of the maritime silk road trade connection between China and the rest of the world. PES-Architects worked with Taiwanese ceramic artist Samuel Hsuan-yu Shih to design the artistic ceramic interior according to acoustical demands, using the legendary “China White” material and technology. All façades are clad with white ceramic tiles and louvres, while both the opera hall and concert hall showcase this cultural material in innovative and creative ways in the acoustic wall surface.

The main façade ceramic louvre section is lens-shaped, relating to the form used in the massing of the buildings. This also maximizes the shading capacity of the vast glass façade. The distance and angle have also been studied with the help of complex scripting in order to achieve the optimal angle and distance between the louvres. The interior surfaces of the opera hall and concert hall are clad with topographical ceramic panels. Based on extensive studies carried out with the acousticians, two types of acoustic panels were developed: an engraved panel and a mosaic tile panel. Both panels are adaptable to the topographical surfaces that are required to achieve high-quality acoustics, as well as the visual language of the design.

Text: PES-Architects

Location

Approximate location

Images

Aerial view, Fuzhou Strait Culture and Art Centre
Aerial view, Fuzhou Strait Culture and Art Centre (© PES-Architects)

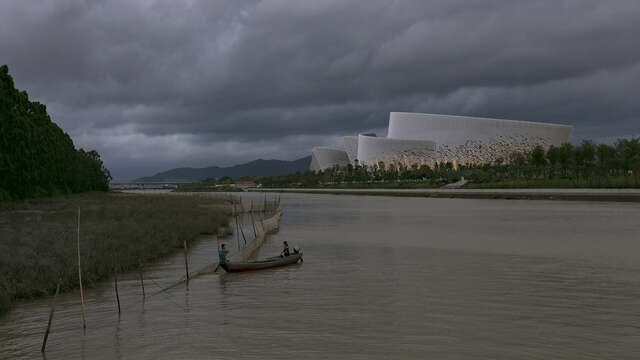

View from the river, Fuzhou Strait Culture and Art Centre
View from the river, Fuzhou Strait Culture and Art Centre (© Marc Goodwin)

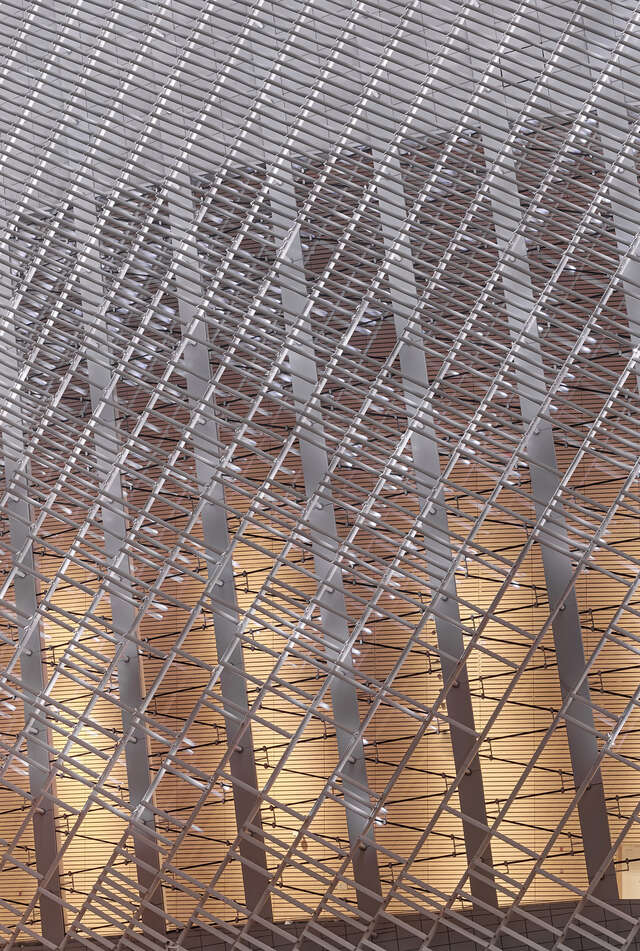

Ceramic and bamboo façade, Fuzhou Strait Culture and Art Centre
Ceramic and bamboo façade, Fuzhou Strait Culture and Art Centre (© Virgile Simon Bertrand)

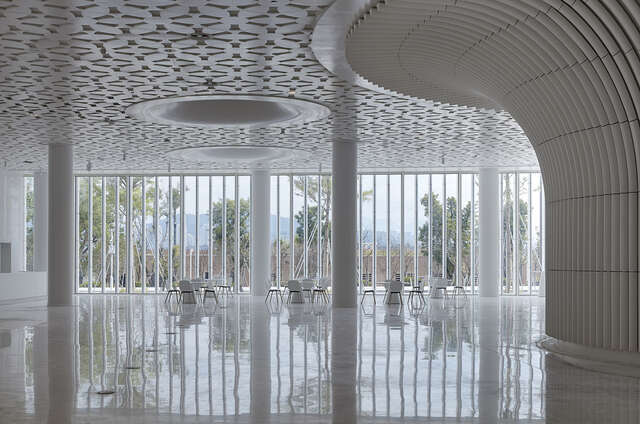

Lobby, Fuzhou Strait Culture and Art Centre
Lobby, Fuzhou Strait Culture and Art Centre (© Virgile Simon Bertrand)

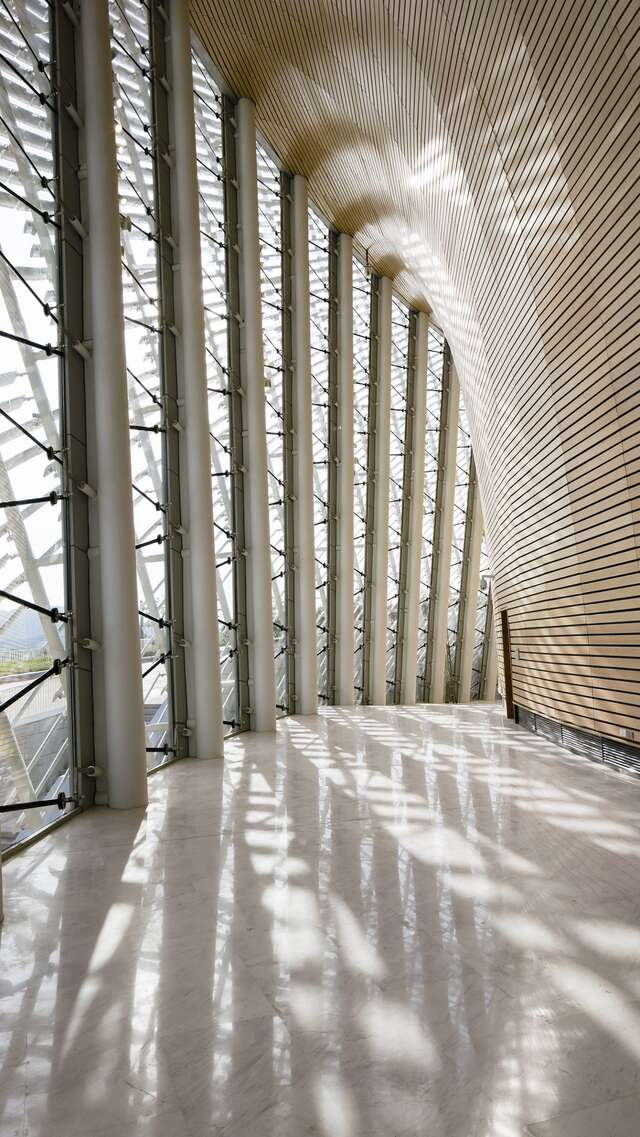

Gallery, Fuzhou Strait Culture and Art Centre
Gallery, Fuzhou Strait Culture and Art Centre (© Marc Goodwin)

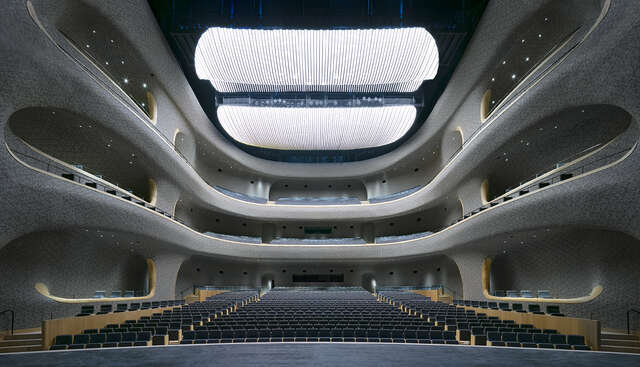

Opera hall, Fuzhou Strait Culture and Art Centre
Opera hall, Fuzhou Strait Culture and Art Centre (© Marc Goodwin)

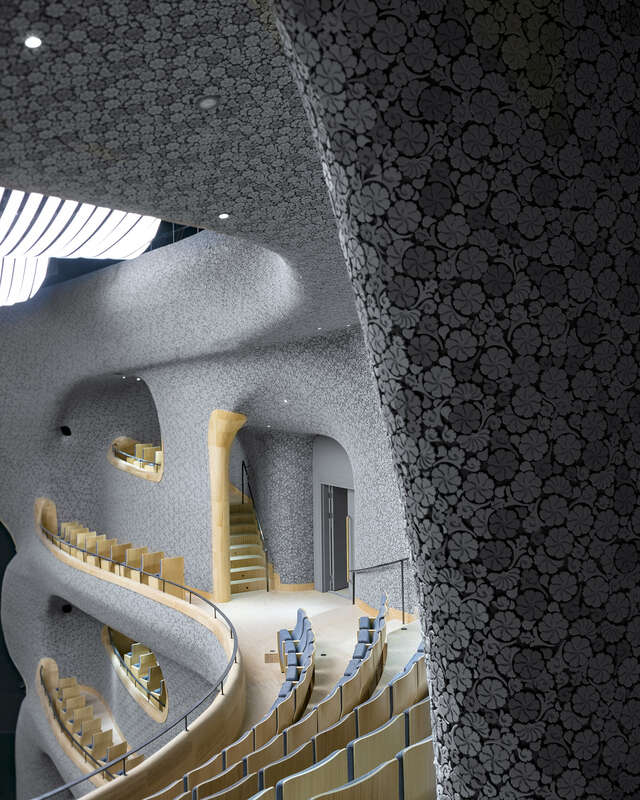

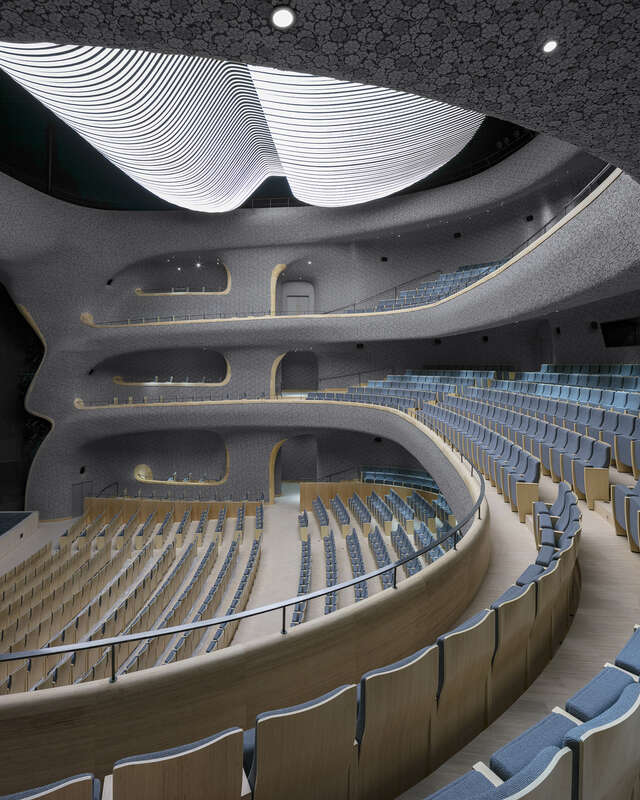

Opera hall balcony, Fuzhou Strait Culture and Art Centre
Opera hall balcony, Fuzhou Strait Culture and Art Centre (© Marc Goodwin)
Opera hall, Fuzhou Strait Culture and Art Centre
Opera hall, Fuzhou Strait Culture and Art Centre (© Marc Goodwin)
