Event Centre Satama building, a nearly 8000-square-metre event venue, has been completed near the Maritime Centre Vellamo in Kotka, Finland in 2023. What makes the Event Centre Satama, designed by ALA Architects, particularly interesting is that wood is not only used as a surface material on the impressive ceiling of the venue lobby but also as a structural material.

The event hall is around 20 meters high and its exterior is covered by a zinc surface. Behind the metal cladding, there are CLT wall structures, which have been left exposed in the indoor spaces, for instance in the office wing. For various practical reasons, the rest of the building uses a hybrid structure that also includes concrete and steel parts.

From a wood construction perspective, the curved roof structure of the lobby is the building’s most interesting feature. It descends from the height of the hall area’s wall at around 15 meters and ends in a wide overhang supported by round, slanting steel pillars and anchored into the bedrock.

The roof structure is formed by glulam beams with a span of around 30 meters. In principle, the shape of the roof is evocative of a freely hanging ‘bedsheet’, as the beams are only subject to pulling force. The lower edges of the roof joists rest on diagonal pillars and vertical tie rods anchored into the bedrock. Meanwhile, the upper edges of the joists are connected to steel-framed wall and ceiling grid systems, which have also been anchored into the bedrock. Together, the long, curved wooden beams form a structural whole.

The building is suitable for public events for over 3,000 people. The large event hall can also be divided into several, smaller spaces, and the second floor has more space for various functions. The hall space on the second floor can also serve large events.

Event Centre Satama was completed in the summer of 2023.

Location

Keskuskatu 33, Kotka
60.4628738, 26.937136

Images

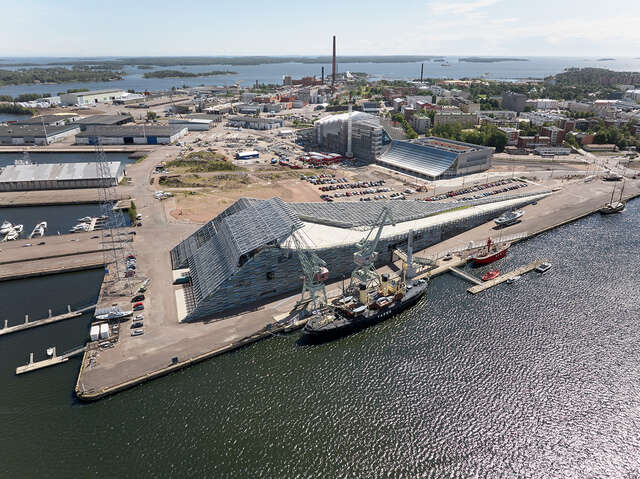

The event centre behind the Maritime Centre Vellamo, Event Centre Satama
The event centre behind the Maritime Centre Vellamo, Event Centre Satama (© Tuomas Uusheimo)

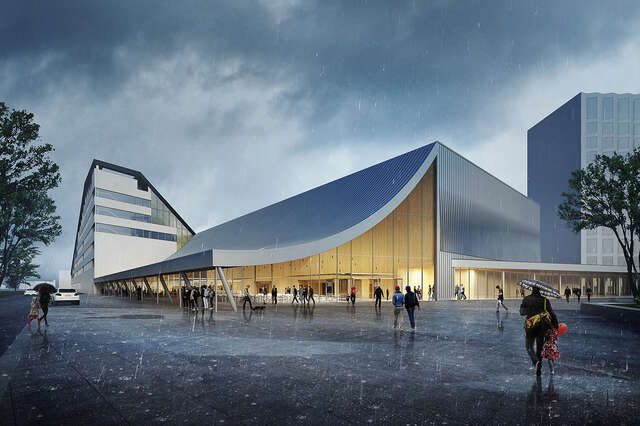

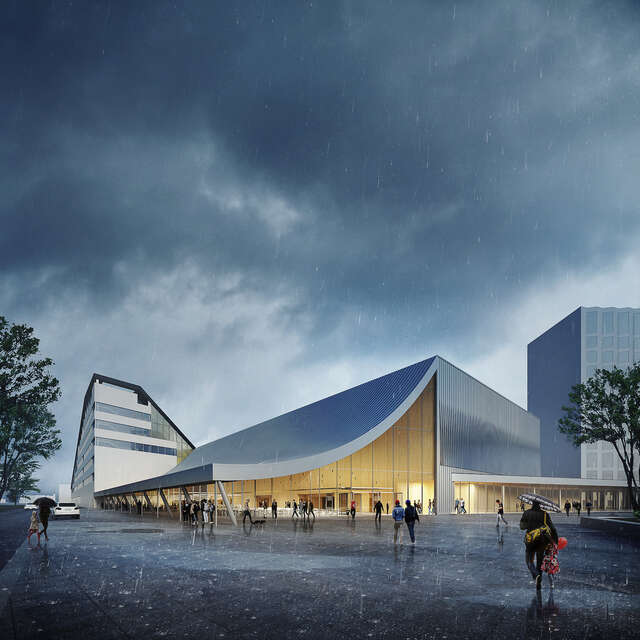

Rendering, Event Centre Satama
Rendering, Event Centre Satama (© ALA Architects)
Construction site, Event Centre Satama
Construction site, Event Centre Satama (© Tuomas Uusheimo)

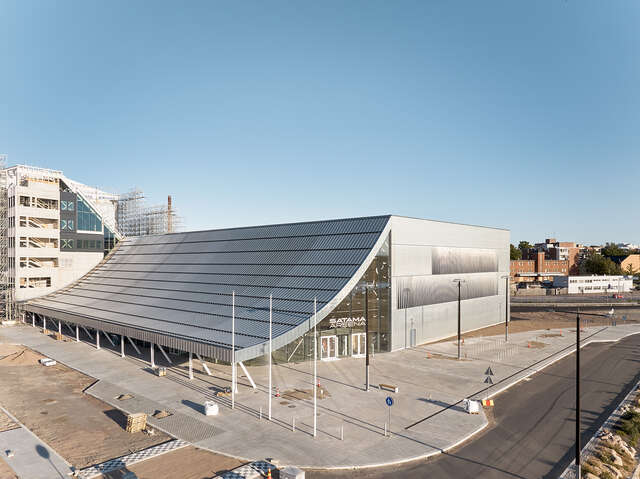

Newly completed, Event Centre Satama
Newly completed, Event Centre Satama (© Tuomas Uusheimo)

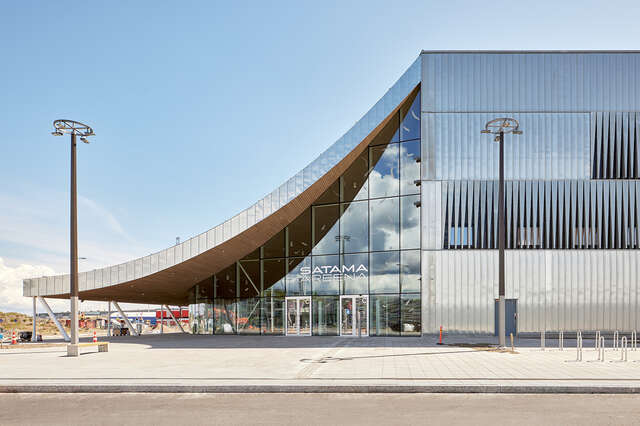

Entrance side facade, Event Centre Satama
Entrance side facade, Event Centre Satama (© Tuomas Uusheimo)
Lobby, rendering, Event Centre Satama
Lobby, rendering, Event Centre Satama (© ALA Architects)

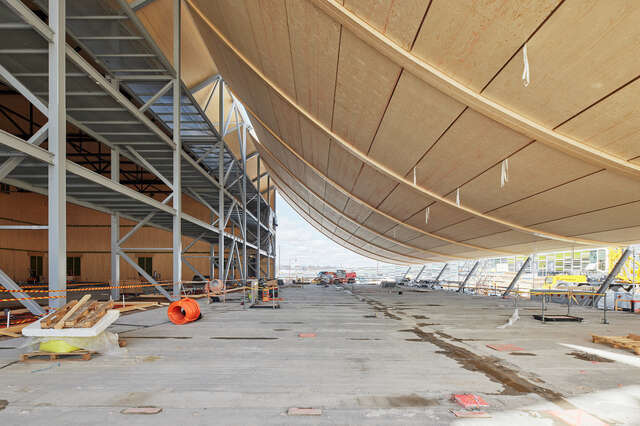

Lobby under construction, Event Centre Satama
Lobby under construction, Event Centre Satama (© Tuomas Uusheimo)

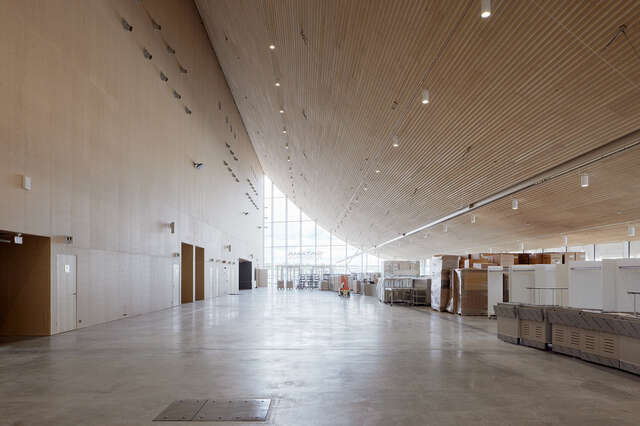

Lobby nearly completed, Event Centre Satama
Lobby nearly completed, Event Centre Satama (© Tuomas Uusheimo)
Event Centre Satama
Event Centre Satama (© Tuomas Uusheimo)
Main hall, rendering, Event Centre Satama
Main hall, rendering, Event Centre Satama (© ALA Architects)
Main hall, rendering, Event Centre Satama
Main hall, rendering, Event Centre Satama (© ALA Architects)

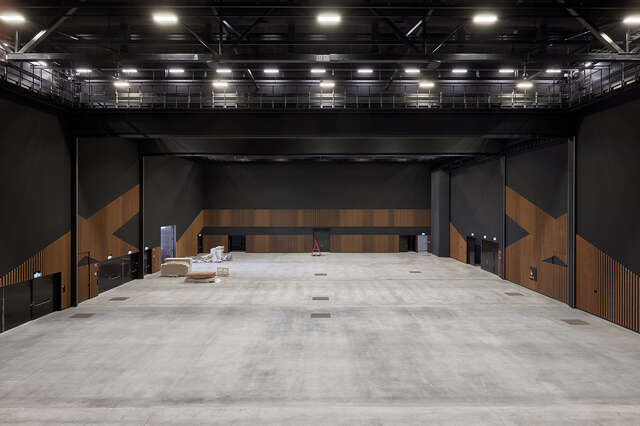

Main hall nearly completed, Event Centre Satama
Main hall nearly completed, Event Centre Satama (© Tuomas Uusheimo)
Ground floor, Event Centre Satama
Ground floor, Event Centre Satama (© ALA Architects)

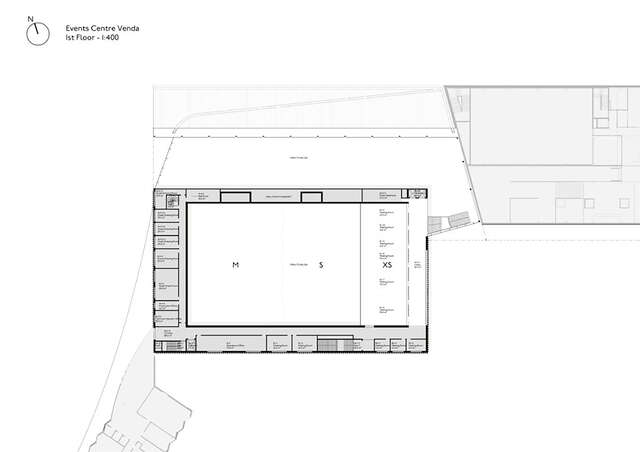

1st floor, Event Centre Satama
1st floor, Event Centre Satama (© ALA Architects)

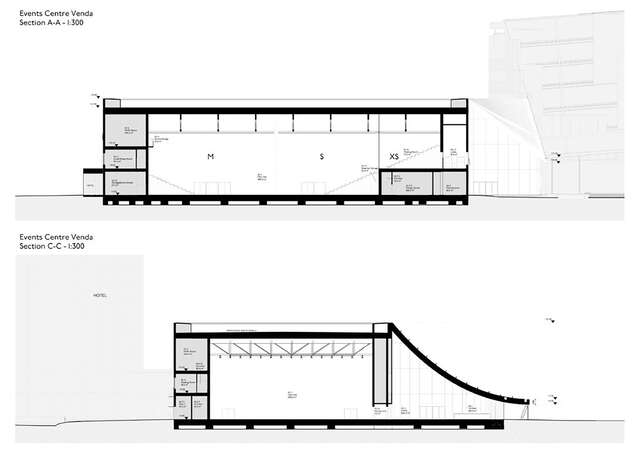

Section, Event Centre Satama
Section, Event Centre Satama (© ALA Architects)

More projects by author

Empty placeholder image
Bookmark

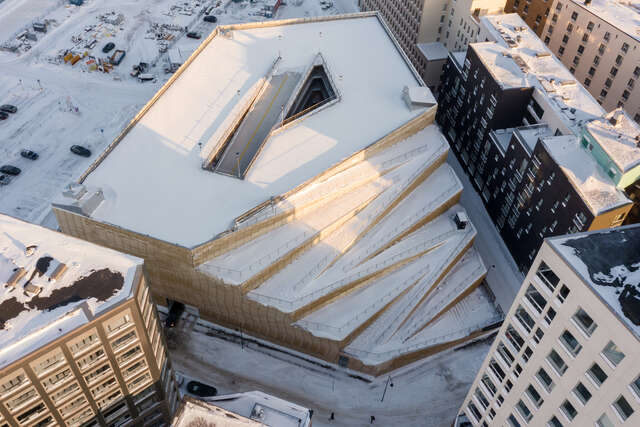

Saukonlaituri Parking Facility

  • Helsinki
Empty placeholder image
Bookmark

New Delhi Embassy of Finland

  • New Delhi
Empty placeholder image
Bookmark

Lappeenranta City Theatre

  • Lappeenranta
Empty placeholder image
Bookmark

Helsinki Central Library Oodi

  • Helsinki
Empty placeholder image
Bookmark

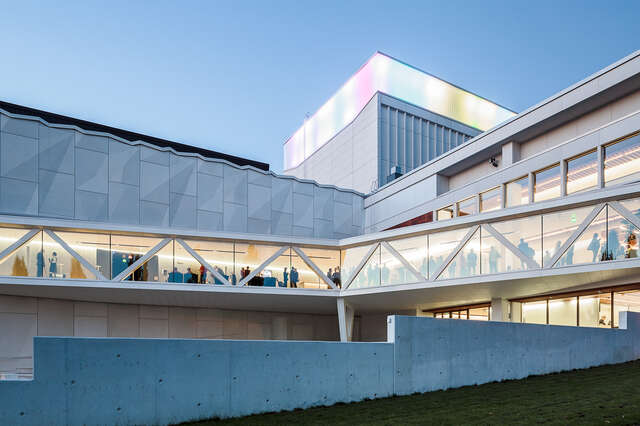

Kuopio City Theatre

  • Kuopio
Empty placeholder image
Bookmark

Kilden Performing Arts Centre

  • Kristiansand

Nearby projects

Empty placeholder image
Bookmark

Kotka Co-operative Bank

  • 100 m
Empty placeholder image
Bookmark

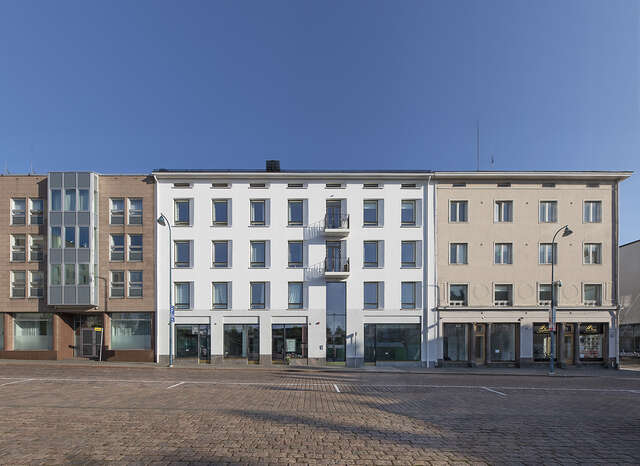

Toritalo Housing
